Calor Shrink Tube
Calor refugiens tubus est quidam polymerus intelligens manicam materiam contractam in calefactionem. Hoc productum emere potes ex officina Taili in Sinis. Effectum memoriae elasticae adiuvat ut objecta calefacta arcte involvat, eo quod velit, obsignare, munimen et identificatio functiones assequi.
Gratissimum est ut calorem diuturnum ex Taili refugientis fistulam emere, opificem professionalem. Ob suam humilem sumptus, amplam applicabilitatem et certae operationis effectus, hic productus necessarius factus est materia fundamentalis in campis electricis et electronicis modernis.
Praecipua lineamenta:
1. Praeclara insulae proprietates, cum bona velit operatione, brevibus circuitibus impediens.
2. Obsignatio et munimen, post detractationem, habet bona signandi proprietates, efficaciter praecavens umoris, aquae; pulvis, et luctus.
3. Dives in coloribus adhiberi potest ad varias intentiones, gradus, et functiones distinguendas, ac notati esse possunt. munus.
4. Simplex installation, calefactio sufficit.
5. Maximum sumptus-efficacia, parvo pretio, late patet.

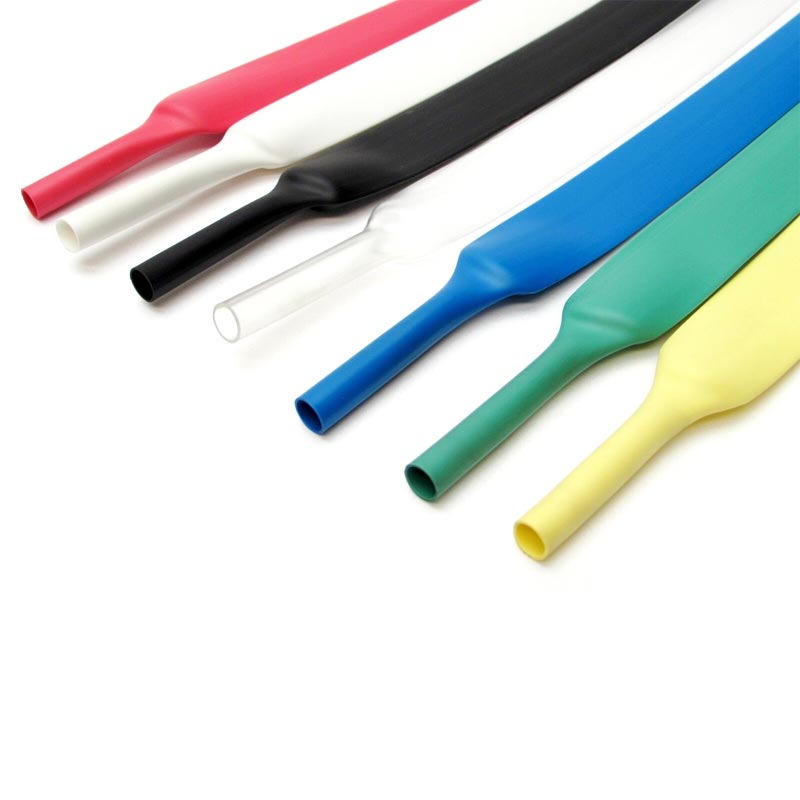

2:1 1kV calor refugiat fistulam;
Repono temperatus: -40℃ ad 50℃
Coepi contractio temperatus: 70℃; Perfecta contractio temperatus: 125℃
Vexillum colorum: Nigrum, Rubrum, Flavum, Viridis, Caeruleum, Album, Transparens, Alii colores secundum to . nativus esse possunt mos requisitus.
| Specification(mm) | Diae ante reformidant (mm) | Diae post reformidant (mm) | Muri crassitudine post horreat (mm) | Stipare (m/volumen) |
| Φ6.0 | 6 | 3 | 0.5±0.05 | 100 |
| *Φ7.0 | 7 | 3.5 | 0.5±0.05 | 100 |
| Φ8.0 | 8 | 4 | 0.55±0.05 | 100 |
| *Φ9.0 | 9 | 4.5 | 0.55±0.05 | 100 |
| Φ10 | 10 | 5 | 0.55±0.05 | 100 |
| *Φ11 | 11 | 5.5 | 0.55±0.05 | 100 |
| Φ12 | 12 | 6 | 0.6±0.05 | 100 |
| *Φ13 | 13 | 6.5 | 0.6±0.05 | 100 |
| Φ14 | 14 | 7 | 0.6±0.05 | 100 |
| *Φ15 | 15 | 7.5 | 0.6±0.05 | 100 |
| Φ16 | 16 | 8 | 0.65±0.05 | 100 |
| *Φ17 | 17 | 8.5 | 0.65±0.05 | 100 |
| Φ18 | 18 | 9 | 0.7±0.05 | 100 |
| Φ20 | 20 | 10 | 0.7±0.05 | 100 |
| Φ22 | 22 | 11 | 0.8±0.05 | 100 |
| Φ25 | 25 | 12.5 | 0.9±0.05 | 100 |
| *Φ28 | 28 | 14 | 0.9±0.05 | 100 |
| Φ30 | 30 | 15 | 0.9±0.05 | 50 |
| Φ35 | 35 | 17.5 | 0.9±0.05 | 50 |
| Φ40 | 40 | 20 | 1.0±0.05 | 50 |
| Φ50 | 50 | 25 | 1.0±0.05 | 50 |
| Φ60 | 60 | 30 | 1.0±0.05 | 50 |
| Φ70 | 70 | 35 | 1.0±0.05 | 25 |
| Φ80 | 80 | 40 | 1.0±0.05 | 25 |
| Φ90 | 90 | 45 | 1.1±0.05 | 25 |
| Φ100 | 100 | 50 | 1.1±0.05 | 25 |
| Φ120 | 120 | 60 | 1.2±0.05 | 25 |
| Φ150 | 150 | 75 | 1.2±0.05 | 25 |
| Φ180 | 180 | 90 | 1.2±0.05 | 25 |
Infra 20mm maxime productos electronicos tegit, cum supra 20mm maxime vim productorum operit.

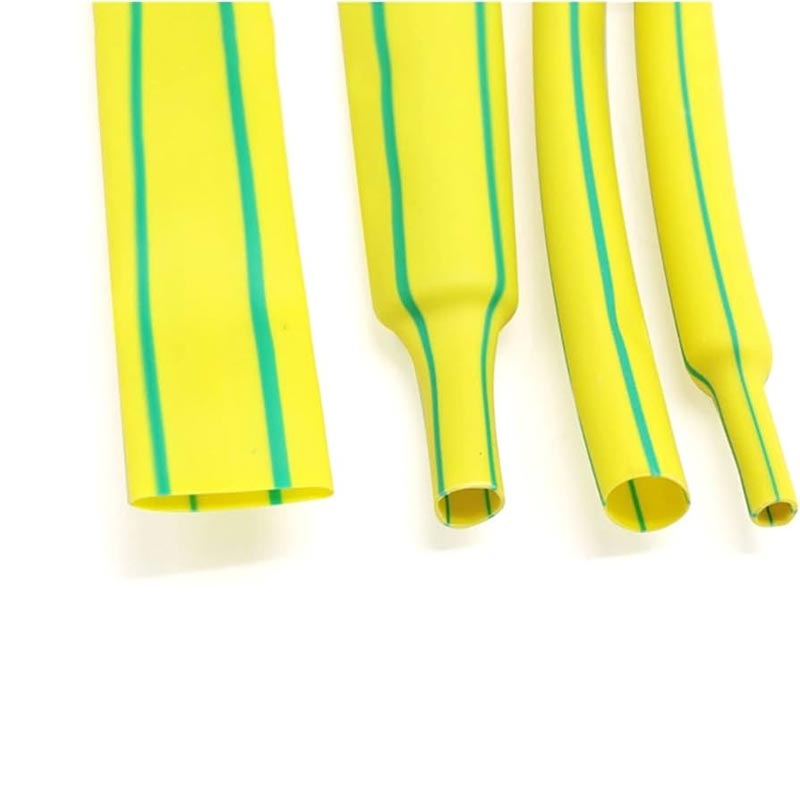

II: II flavo & viridi calor horreat fistulam (ad terram filum)
(Potest etiam offerre rationem specificationis 3:1).
| Specification(mm) | Diae ante reformidant (mm) | Diae post reformidant (mm) | Muri crassitudine post horreat (mm) |
| Φ6.0 | 6 | 3 | 0.55±0.1 |
| *Φ7.0 | 7 | 3.5 | 0.55±0.1 |
| Φ8.0 | 8 | 4 | 0.6±0.1 |
| Φ10 | 10 | 5 | 0.6±0.1 |
| Φ12 | 12 | 6 | 0.65±0.1 |
| *Φ13 | 13 | 6.5 | 0.65±0.1 |
| Φ14 | 14 | 7 | 0.7±0.1 |
| *Φ15 | 15 | 7.5 | 0.75±0.1 |
| Φ16 | 16 | 8 | 0.75±0.1 |
| Φ18 | 18 | 9 | 0.8±0.1 |
| Φ20 | 20 | 10 | 0.82±0.1 |
| Φ22 | 22 | 11 | 0.82±0.1 |
| Φ25 | 25 | 12.5 | 1.00±0.1 |
| *Φ28 | 28 | 14 | 1.00±0.1 |
| Φ30 | 30 | 15 | 1.05±0.1 |
| Φ35 | 35 | 17.5 | 1.15±0.1 |
| Φ40 | 40 | 20 | 1.20±0.1 |
| Φ50 | 50 | 25 | 1.20±0.1 |
| Φ60 | 60 | 30 | 1.50±0.1 |
| Φ70 | 70 | 35 | 1.60±0.1 |
| Φ80 | 80 | 40 | 1.70±0.1 |
| Φ90 | 90 | 45 | 1.90±0.1 |
| Φ100 | 100 | 50 | 2.10±0.1 |

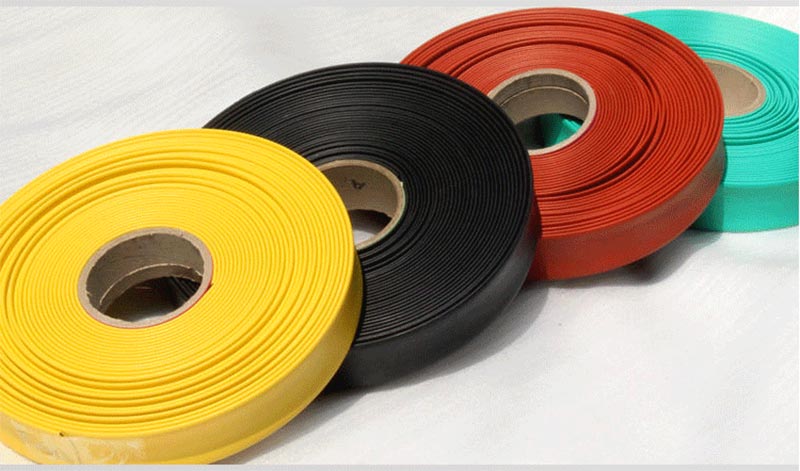

calor refugiat busbar fistulam usque ad XXXVI kV
Color: ruber, flavus, caeruleus, viridis, niger
| Specification(mm) | Diae ante reformidant (mm) | Diae post reformidant (mm) | Stipare (m/volumen) |
| Φ20 | 20 | 10 | 25 |
| Φ25 | 25 | 10 | 25 |
| Φ30 | 28 | 14 | 25 |
| Φ40 | 38 | 17 | 25 |
| Φ50 | 48 | 21 | 25 |
| Φ65 | 65 | 27 | 25 |
| Φ75 | 73 | 31 | 25 |
| Φ85 | 85 | 32 | 25 |
| Φ100 | 100 | 38 | 25 |
| Φ120 | 120 | 50 | 25 |
